GE TM2500 Gas Turbine Generator

The GE TM2500 is a highly mobile, aeroderivative gas turbine generator designed to deliver fast, flexible, and reliable power solutions. Built upon the proven LM2500 turbine platform, the TM2500 is engineered for rapid deployment, making it ideal for emergency power restoration, grid stabilization, and temporary power needs in remote or disaster-affected areas.

Key Specifications

• Power Output: Up to 34.4 MW (60 Hz) and 34.2 MW (50 Hz) in simple cycle operation.

• Efficiency: Up to 39% in simple cycle mode, depending on configuration and operating conditions.

• Startup Time: Achieves full power production in as little as 5 minutes.

• Installation Time: Can be installed and commissioned in as few as 11 days.

• Fuel Flexibility: Capable of operating on natural gas, liquefied petroleum gas (LPG), and distillate liquid fuels.

• Frequency Conversion: Easily convertible between 50 Hz and 60 Hz operations.

• Emissions Control: Advanced Dry Low Emissions (DLE) technology enables operation without water injection, reducing NOx emissions and eliminating the need for water infrastructure.

Design and Features

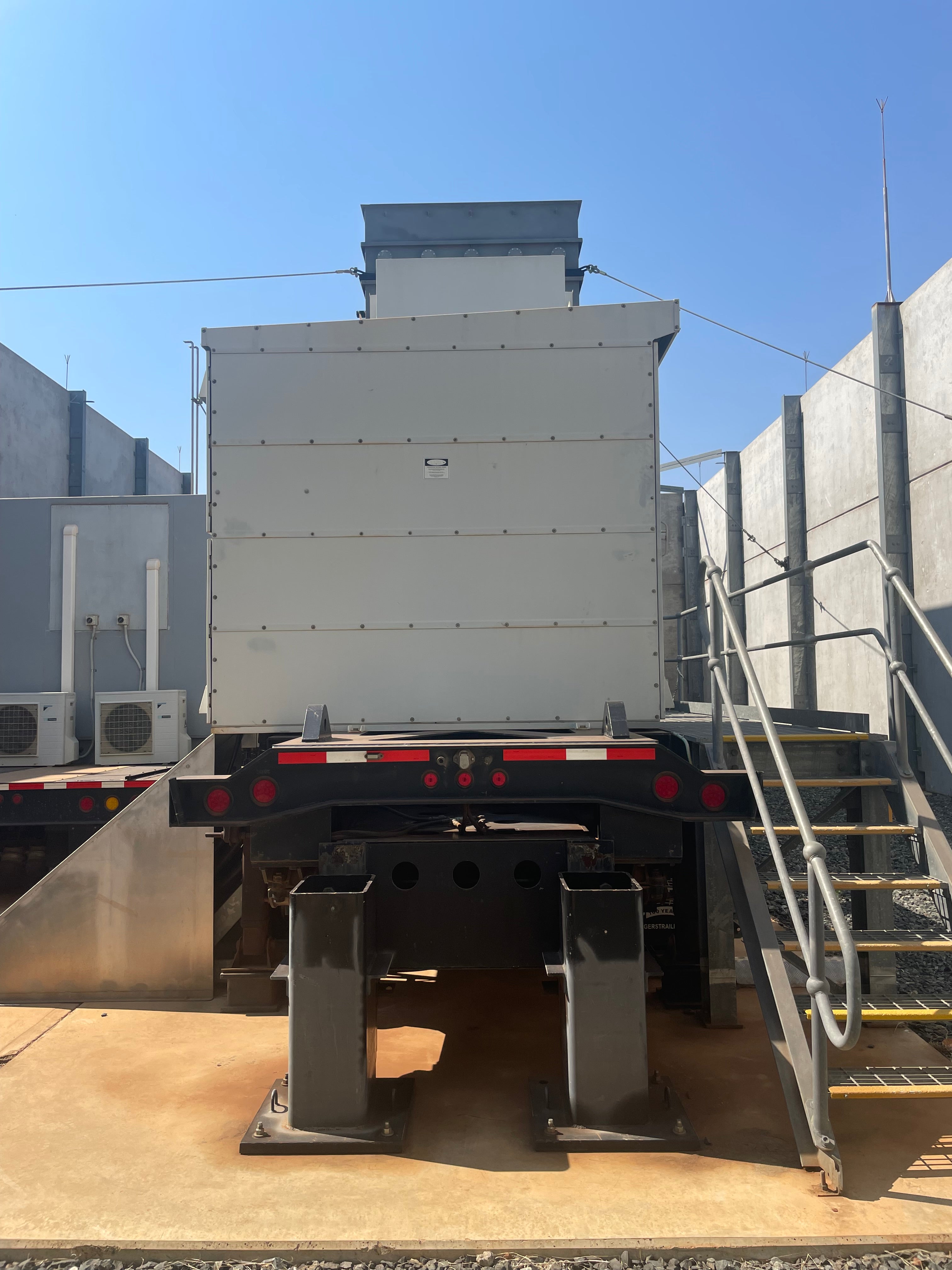

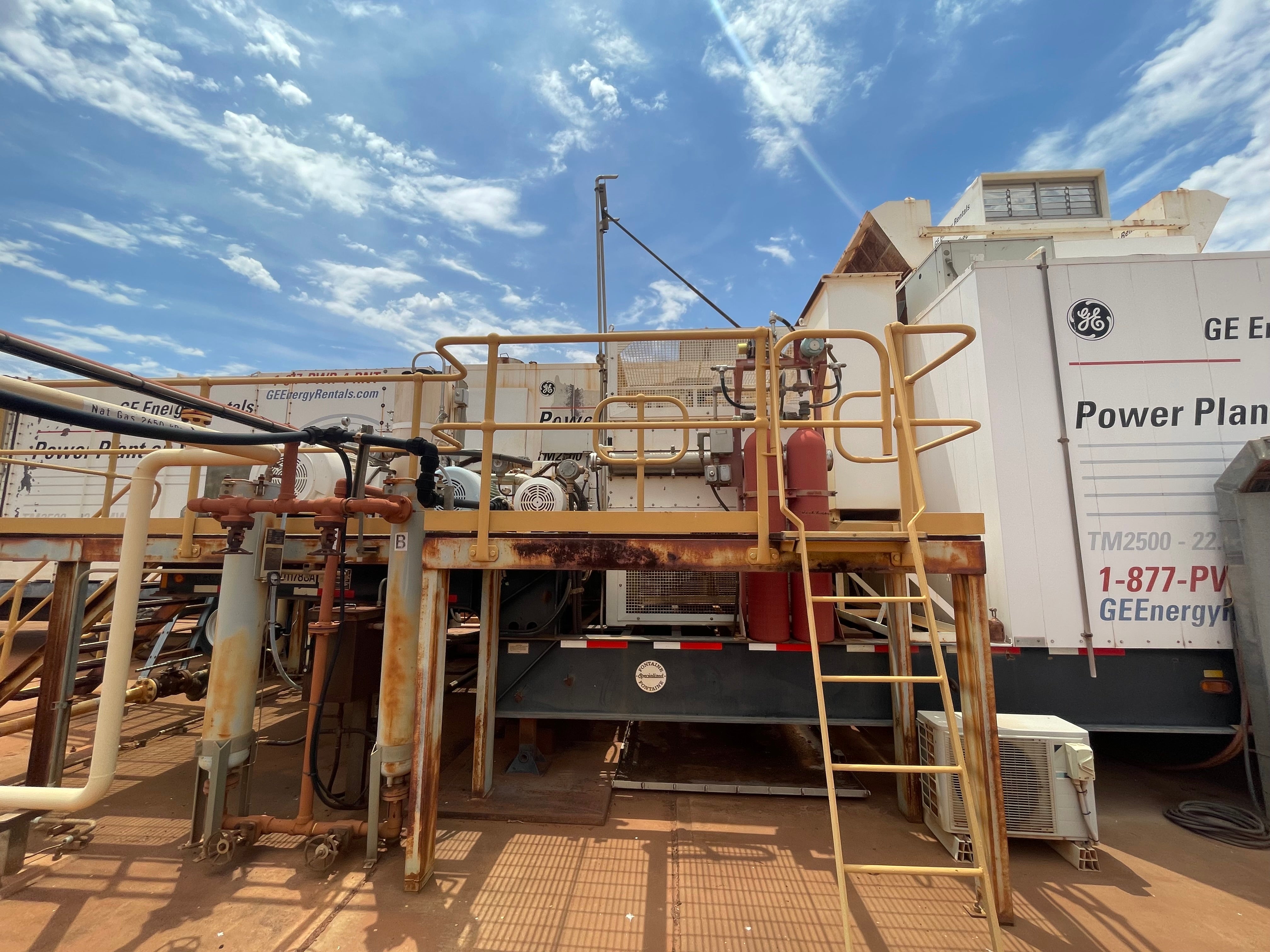

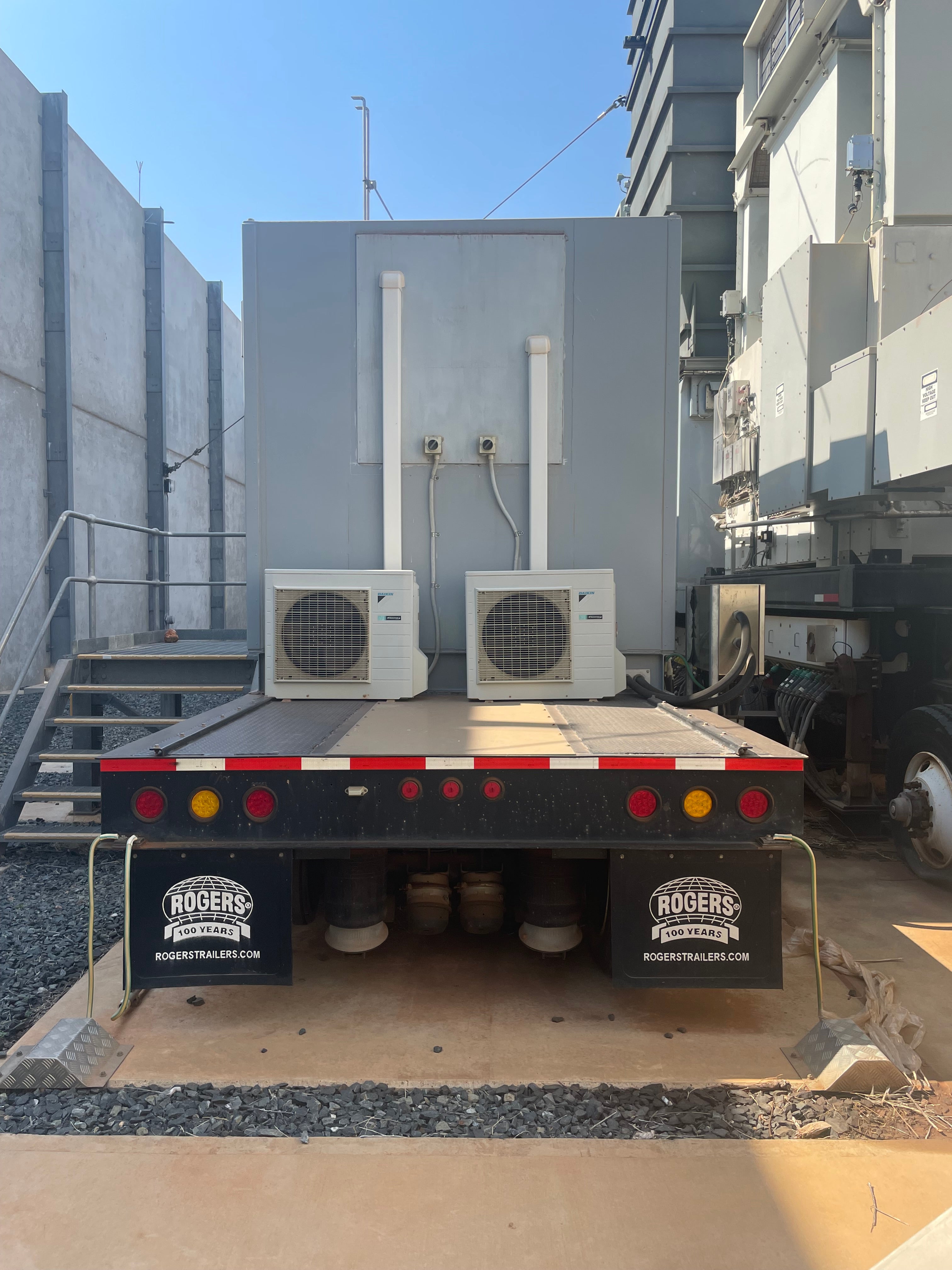

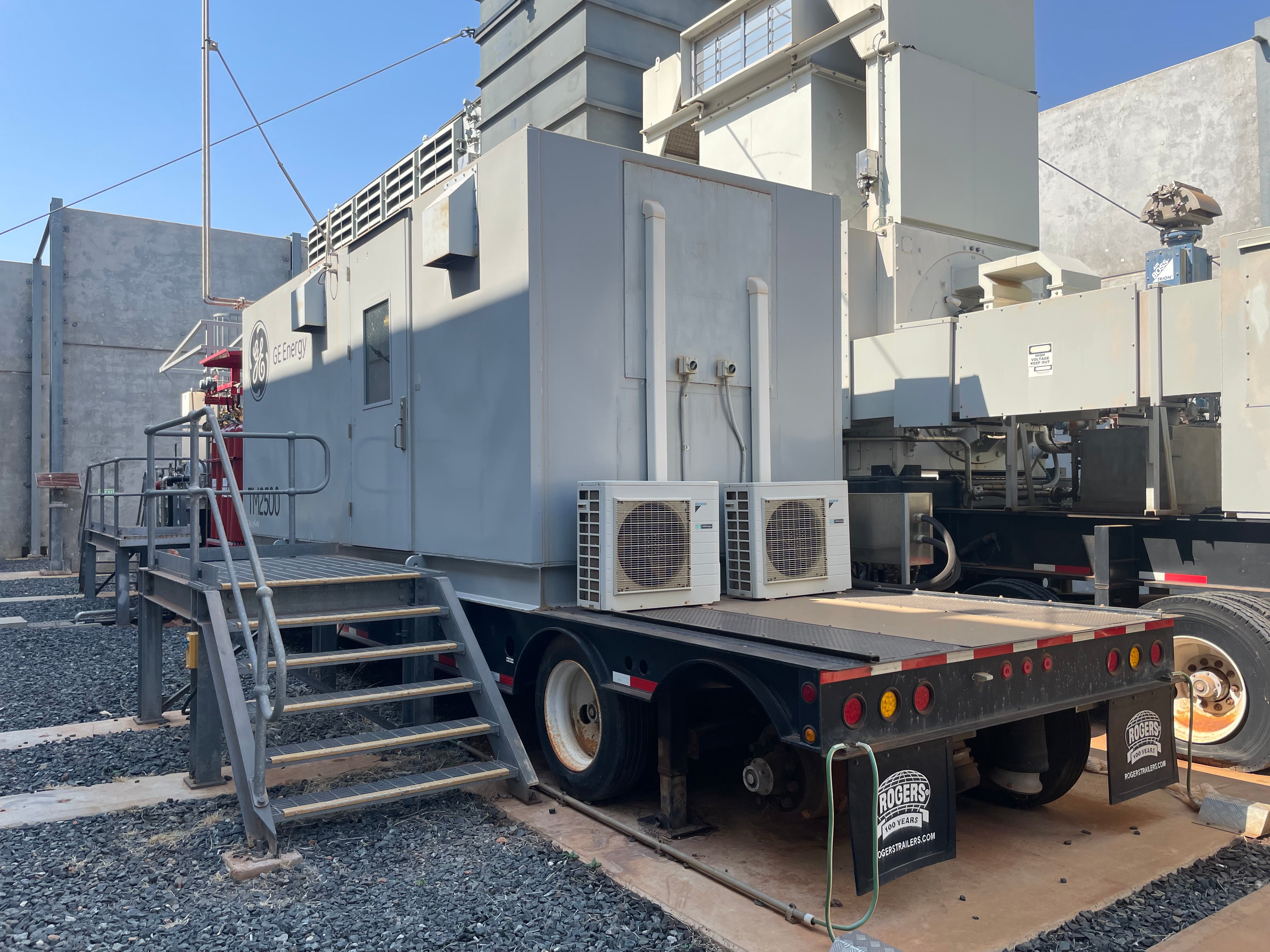

• Mobility: Mounted on a two-trailer system, the TM2500 is designed for easy transportation by land, sea, or air.

• Compact Footprint: The streamlined design allows for deployment in areas with limited space.

• Rapid Deployment: Pre-packaged and factory-tested units facilitate quick setup and commissioning.

• Scalability: Multiple units can be combined to meet higher power demands, providing a scalable solution for various applications.

• Reliability: With over 140 million hours of operating experience, the TM2500 platform boasts high reliability and availability.
