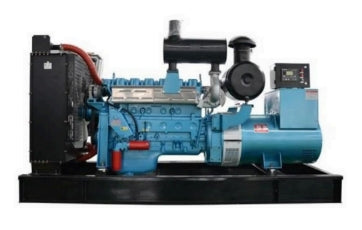

300 kW Natural Gas Generator – Ricardo Engine / JUNWEI Alternator

Condition: New / Excellent
Availability: Immediate

Overview

This high-performance EGGRCD300KWGENSET is a 300 kW natural gas-powered generator designed for efficiency, durability, and low emissions. Built to rigorous industry standards, it’s an ideal solution for industrial facilities, power plants, and backup power applications.

Technical Specifications

Model: EGTRCD300KWGENSET

• Prime Power: 300 kW / 375 kVA

• Standby Power: 330 kW / 413 kVA

• Voltage: 400/230 V (other voltages optional)

• Frequency: 50 Hz

• Power Factor: 0.8 (lagging)

• Phases: 3

• Sound Level @ 7m: Open ≤99 dB(A); Silent ≤85 dB(A)

• Operating Temperature: -10°C to 40°C

• Fuel: Pipeline natural gas (MN ≥ 85)

• Gas Supply Pressure: Max. inlet 50 kPa

Engine

• Make: Ricardo 6126IZLD-NG4

• Type: 6-cylinder, in-line, 4-stroke, turbocharged, inter-cooled

• Cooling: Closed liquid-cooled

• Rated Speed: 1500 rpm

• Displacement: 12.54 L

• Starting System: 24VDC electric starter

• Fuel Consumption: 54.21 kg/h at 100% load

• Additional Features: Intelligent fuel injection, optimized turbocharger, NG gas regulator & filter, radiator system for 40°C ambient

Alternator

• Make: JUNWEI WHA-250-4/0.4

• Type: Brushless, self-excited

• Enclosure: IP23

• Voltage Regulation: ≤±1%

• Insulation Class: H

Control Module

Model: 6120CAN – Auto Mains Failure Control Module

• Back-lit LCD display

• 3-phase generator & mains monitoring

• Tracks speed, frequency, voltage, current, oil pressure, coolant temp

• Displays warnings, shutdowns, and status updates

• Hours counter for accurate maintenance tracking

Standard Features

• ECU

• Closed water-cooling

• Air filter

• Starting batteries

• Oil drain valve

• Circuit breaker

• Forklift grooves

• Muffler

• Shock absorbers

• IP23 protection

• H-type insulation

Options

• Voltage: 380V/400V, 415V/440V, 6.3kV/10.5kV/13.8kV

• Automatic transfer switch

• Automatic parallel system

• Engine heater (water & oil)

• Alternator heater
